Configure Your Form (Auto-Generate Form Based On A Data Source, Salesforce)

Configures a Salesforce as the data source for the app, and creates the form based on a Salesforce entity.

Background and Setup

Examples

Prerequisites

Good to Know

  • After you create a form-based app, you cannot change the app to use a different data source. For example, you can not change a form-based app to use a different entity or SharePoint list than the one specified when the app was created. This limitation also applies to cloned apps. That is, you cannot clone a form-based app, and then change the data source in the cloned app.
  • Once configured, the primary data source in a data source bound app cannot be deleted. Deleting the primary data source can lead to unexpected behavior or errors in your app because it is the main source of data for the app.
  • When you create a form-based app, these forms are created:
    • New form
    • Update form
    • 3 types of View form:
      • All Records - Shows all the records created for the form-based app.
      • Recently Created Records - Shows the records created for the form-based app in the last 7 days.
      • Recently Modified Records - Shows the records changed for the form-based app in the last 7 days.

      A lookup is created for each view form.

How to Start

  1. Create an app.

    For more information, refer to Create an app.

  2. On the Do you want AI to create your form? screen, click Auto-Generate Form Based On A Data Source.

    Click Auto Generate Form Based On A Data Source
  3. Click Next.
  4. On the Where do you want to store the data for your app? screen, click Salesforce.

    Click Salesforce
  5. Click Next.

How do you want to set up your entity? > Configuration tab

Configures how to send and receive data from Salesforce for your eForm.

Figure 1. How do you want to set up your entity? > Configuration tab

Configuration tab

Fields

Field NameDefinition

Data Source Name
Description:
Specifies a name for the data source.
Allowed Values:
One line of text (a string).

Not Accepted:

  • Spaces
Default Value:
None
Accepts Variables:
No

Salesforce
Description:
Specifies the access token that connects to your Salesforce application.
Allowed Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Variables:
No
Example:
Refer to:

Custom Entities Only
Description:
Specifies whether to show only Salesforce custom entities in the Primary Entity Name list.
Note:
The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
Allowed Values:
  • Selected - Shows Salesforce custom entities in the Primary Entity Name list.
  • Deselected - Shows all Salesforce entities in the Primary Entity Name list.
Default Value:
Deselected
Accepts Variables:
No

Primary Entity Name
Description:
Specifies the Salesforce entity from which you want your form to retrieve data.
Note:
The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
Allowed Values:
A Salesforce entity from the list.
Default Value:
None.

When you select the Salesforce access token, the name of the entities show in the Primary Entity Name list.

Accepts Variables:
No

Use Runtime App User Credentials
Description:
Specifies whether to use the credentials for the authenticated runtime app user to submit the form data to Salesforce.
Allowed Values:
  • Selected - Uses the credentials of the authenticated runtime app user to submit the form data to Salesforce.

    Only use this option in these conditions:

    • Your organization uses Salesforce authentication for AgilePoint NX.
    • Your runtime app users have permissions to submit data to your Salesforce entity that is associated with the form-based app.
  • Deselected - Uses the access token credentials you select in the Salesforce field on the How do you want to set up your entity? > Configuration tab to send data to and from Salesforce.
Default Value:
Deselected
Accepts Variables:
No

How do you want to set up your entity? > Fields tab

Specifies the fields from your Salesforce entity to use in your form-based app.

Figure 2. How do you want to set up your entity? > Fields tab

Fields tab

Fields

Field NameDefinition

Check box
Description:
Specifies the fields to use on your form.
Allowed Values:
  • Selected - Your form contains the field.
  • Deselected - The field does not show on your form.
Default Value:
Selected

Display Name
Description:
Shows the fields associated with an entity.
Allowed Values:
Read only.

Data Type
Description:
Shows the data type of a field.
Allowed Values:
Read only.

Required
Description:
Specifies whether the field is required.
Allowed Values:
Read only.

Unique
Description:
Shows whether a duplicate value is permitted in the field.
Allowed Values:
Read only.

How do you want to set up your entity? > Related Entities tab

Specifies related entity to use on your form for Salesforce.

Figure 3. How do you want to set up your entity? > Related Entities tab

Related Entities tab

Prerequisites

Good to Know

Fields

Field NameDefinition

Checkbox
Description:
Specifies the related entities to use on your form.
Allowed Values:
  • Selected - Your form contains related entity.
  • Deselected - Your form does not use the related entity.
Default Value:
Deselected

Display Name
Description:
Shows the entities that have relationships with the primary entity.
Note:
The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
Allowed Values:
Read only.

Data Type
Description:
Shows the data type of an entity.
Allowed Values:
Read only.

Required
Description:
Specifies whether the related entity is required.
Allowed Values:
Read only.

Unique
Description:
Shows whether a duplicate value is permitted in the related entity.
Allowed Values:
Read only.

Review the data fields for your app screen

Configures the fields for your eForm.

Figure 4. Review the data fields for your app screen

Review the data fields for your app screen

Fields

Field NameDefinition

Select All
Description:
Selects all the fields.
Allowed Values:
  • Selected - Selects all the form fields.
  • Deselected - Deselects all the form fields.

Name
Description:
Specifies the text label for the field that displays on the form.
Allowed Values:
One line of text (a string).

Accepted:

  • Letters
  • Numbers
  • Spaces
  • Special characters
Default Value:
The field name specified in the imported file.

ID
Description:
Specifies a unique, technical name for the form field.

When you enter the value in the Name field, this field shows the value you entered in the Name field with no spaces.

Allowed Values:
One line of text (a string).

Accepted:

  • Letters
  • Numbers
Default Value:
Shows the value in the Name field with no space.

Data Type
Description:
Specifies the data type used in the form field.
Allowed Values:
A data type from the list.
Default Value:
Shows a data type interpreted for the field from the imported file.

Field Type
Description:
Specifies the type of form control used for the field.
Allowed Values:
A form control from the list.
Default Value:
A form control type that is interpreted from the input.

For example, a field called "Amount" might be assigned a Currency form control.

Regenerate
Description:
Deletes the changes and restores the default values for the form.

Apply Layout
Opens this Screen:
Apply Fields Layout screen
Description:
Specifies a file that depicts a form layout, and it applies the layout to the eForm.
Example:
Refer to:

Add Field Add Field icon
Function:
Adds a row for a new field.

Delete Field Delete Field icon
Function:
Deletes the selected row from the fields list.

Configure Picklist Configure Picklist icon
Opens this Screen:
Configure Picklist screen
Description:
Configures a picklist with GenAI.
Example:
Refer to:
Limitations:
This field shows only if the data type for the field is Picklist.

Configure Child Table Configure Child Table icon
Opens this Screen:
Configure child entity fields screen
Description:
Configures the form fields for fields that are formatted as a table in the uploaded file.
Limitations:
This field shows only if the data type for the field is Table.

Mark as Mandatory
Description:
Specifies whether the form field is required.
Allowed Values:
  • Selected - The field must have a value.
  • Deselected - A value is not required for the field.
Default Value:
The value configured for the field.

Number Of Columns
Description:
Specifies the number of columns to show on the eForm.
Allowed Values:
An integer.

Range:

  • 1-10
Default Value:
2

Show Line Break Fields
Description:
Specifies whether to group the form fields based on the column layout on the form template you upload.
Allowed Values:
  • Selected - Groups the form fields with horizontal line breaks based on the column layout shown in the uploaded file.

    If you create the fields with the Excel or Generate using AI options, the fields are grouped based on the number of columns specified in the Number Of Columns field.

  • Deselected - Groups the form fields in a single list in the order shown in the uploaded file, as it reads left to right.
Default Value:
Deselected
Example:
Refer to:

Apply Fields Layout screen

Specifies a file that depicts a form layout, and it applies the layout to the eForm.

Figure 5. Apply Fields Layout screen

Apply Fields Layout screen

Good to Know

  • You can use a file that represents a form layout, and the system applies the layout to your form.

    The supported file types are .pdf, .png, .jpg, and .jpeg.

Fields

Field NameDefinition

Upload Layout Template File
Function:
Specifies a file that depicts a form layout, and it applies the layout to the eForm.

You can drag the file from your local machine.

Allowed Values:
A PDF or an image file that shows a form layout.

Click Upload File to select a file from your local machine.

The file can be one of these types:

  • .pdf
  • .png
  • .jpg
  • .jpeg
Default Value:
None
Example:
Refer to:

Configure List Options > Salesforce screen

Full documentation coming soon.

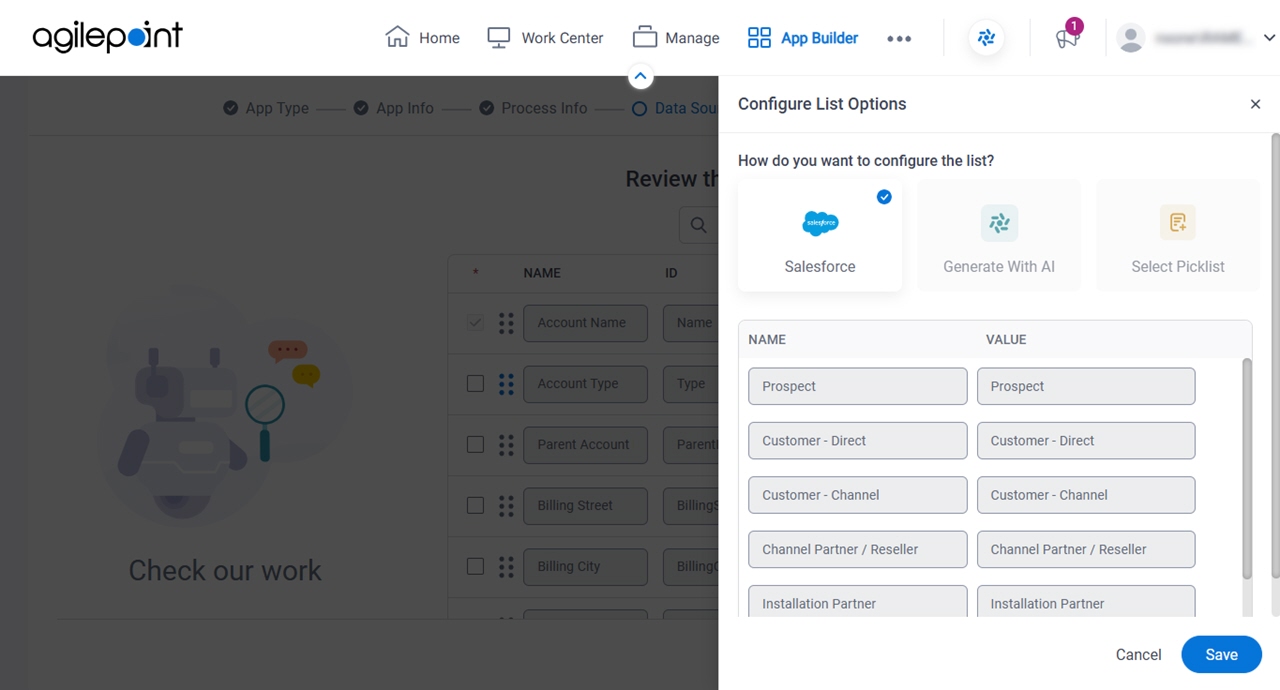

Figure 6. Configure List Options > Salesforce screen

Configure List Options screen

Good to Know

How to Start

  1. On the Review the data fields for your app screen, in the Field Type field, select one of these:
    • Check Box
    • Switch
    • Radio Button
    • Drop-Down List
    • List Box
    • Multi-Select List Box
  2. Click Configure Configure icon.

Configure List Options > Generate With AI screen

Full documentation coming soon.

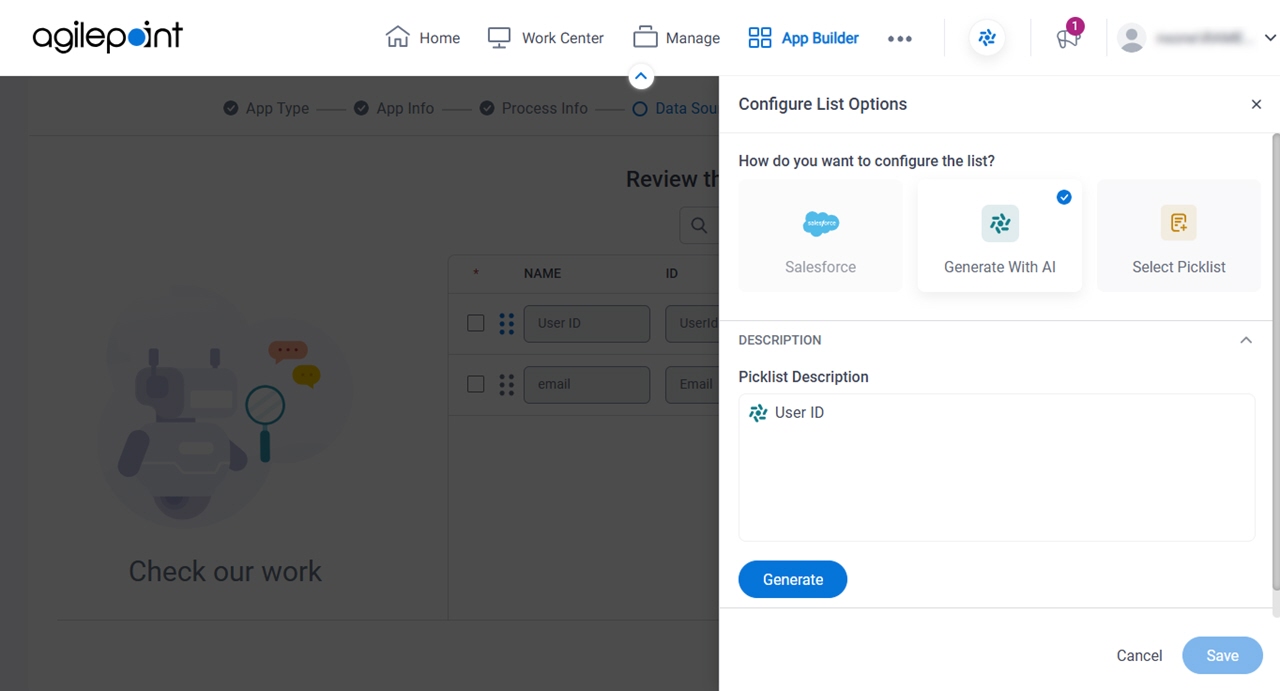

Figure 7. Configure List Options > Generate With AI screen

Configure List Options screen

Good to Know

How to Start

  1. On the Review the data fields for your app screen, in the Field Type field, select one of these:
    • Check Box
    • Switch
    • Radio Button
    • Drop-Down List
    • List Box
    • Multi-Select List Box
  2. Click Configure Configure icon.

Configure List Options > Select Picklist screen

Full documentation coming soon.

Figure 8. Configure List Options > Select Picklist screen

Configure List Options screen

Good to Know

How to Start

  1. On the Review the data fields for your app screen, in the Field Type field, select one of these:
    • Check Box
    • Switch
    • Radio Button
    • Drop-Down List
    • List Box
    • Multi-Select List Box
  2. Click Configure Configure icon.

Select the forms to create for your human tasks screen

Specifies the human task activities for which you want to create eForms.

Figure 9. Select the forms to create for your human tasks screen

Select the forms to create for your human tasks screen

Fields

Field NameDefinition

Human Task Activities
Description:
Shows the list of human task activities configured on the Review the activities for your app screen.
Allowed Values:
Read only.

Create Task Form
Description:
Specifies whether to create an eForm for the human task activity.
Allowed Values:
  • On - Creates an eForm for the human task activity and adds it to the associated activity.
  • Off - Does not create an eForm for the activity. The activity is created with no eForm.
Default Value:
On
Example:
Refer to:
