Create Column activity

An activity that creates a column in Monday.

Configure the Create Column activity

Examples

(External) AgilePoint NX Connector For Monday
Examples - Step-by-step use case examples, information about what types of examples are provided in the AgilePoint NX Product Documentation, and other resources where you can find more examples.

Prerequisites

AgilePoint NX OnDemand (public cloud), or AgilePoint NX PrivateCloud or AgilePoint NX OnPremises v9.0 Software Update 1 or higher.

Good to Know

To send an email notification, click Advanced > Email Notifications .
For more information, refer to Email Notifications screen (Process Activities).
In most text fields, you can use process data variables as an alternative to literal data values.
You can configure whether this activity waits for other activities before it runs.
For more information, refer to How Do I Configure an Activity to Wait for Other Incoming Activities?
This section shows the configuration settings on the configuration screens for this activity. Other configuration settings apply to system activities. For more information, refer to:
Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

How to Start

Open Process Builder.
For information about how to open this screen, refer to Process Builder.
In Process Builder, in the Activity Library, open the Monday tab.
On the Monday tab, drag the Create Column activity onto your process.

General Configuration

Specifies the basic settings for the Create Column activity.

Good to Know

Documentation for this screen is provided for completeness. The fields are mostly self-explanatory.

Fields

Field Name	Definition
Display Name	Description: Specifies the activity name that shows in your process. Allowed Values: One line of text (a string). Accepted: Letters Numbers Spaces Default Value: None Accepts Variables: No Example: This is a common configuration field that is used in many examples. Refer to: Examples - Step-by-step use case examples, information about what types of examples are provided in the AgilePoint NX Product Documentation, and other resources where you can find more examples.
Description	Description: Specifies an optional text description for your activity. Allowed Values: More than one line of text. Default Value: None Accepts Variables: No

Field Name

Definition

Display Name

Description:

Specifies the activity name that shows in your process.

Allowed Values:

One line of text (a string).

Accepted:

Letters
Numbers
Spaces

Default Value:

None

Accepts Variables:

Example:

This is a common configuration field that is used in many examples. Refer to:

Examples - Step-by-step use case examples, information about what types of examples are provided in the AgilePoint NX Product Documentation, and other resources where you can find more examples.

Description

Description:: Specifies an optional text description for your activity.
Allowed Values:: More than one line of text.
Default Value:: None
Accepts Variables:: No

Create Column Configuration

Specifies the information to create a column in Monday.

Fields

Field Name	Definition
Monday	Description: Specifies the access token that connects to Monday. Allowed Values: A list of access tokens configured for your environment. Default Value: None Example: Refer to: (External) AgilePoint NX Connector For Monday
Create	Opens this Screen: Access Token for Monday Function of this Screen: Configure an access token to connect to Monday.
Workspace Name Or ID	Description: Specifies the name or ID of the workspace in which to create the column. Allowed Values: A workspace name from the list. When you select the access token from the Monday field, this field shows the workspace names associated with the access token. An integer that represents a workspace ID. The workspace ID comes from Monday. Default Value: None Accepts Variables: Yes Example: Refer to: (External) AgilePoint NX Connector For Monday Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Board ID	Description: Specifies the name or ID of the board in which to create the column. Allowed Values: A board name from the list. When you specify the workspace name or workspace ID in the Workspace Name Or ID field, this field shows the board names associated with the workspace. An integer that represents a board ID. The board ID comes from Monday. Default Value: None Accepts Variables: Yes Example: Refer to: (External) AgilePoint NX Connector For Monday Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Column Title	Description: Specifies the title of the column to create in Monday. Allowed Values: One line of text (a string). Accepted: Letters Numbers Spaces Special characters Default Value: None Accepts Variables: Yes Example: Refer to: (External) AgilePoint NX Connector For Monday Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Column Type	Description: Specifies the type of column to create. Allowed Values: A column type from the list. Default Value: None Example: Refer to: (External) AgilePoint NX Connector For Monday
Configure Custom Label	Opens this Screen: Create Column Configuration > Configure Custom Label To Open this Field: In the Column Type field, select DropDown. Function of this Screen: Configures the labels to add to the column.
Description	Description: Specifies an optional text description for the column. Allowed Values: More than one line of text. Default Value: None Example: Refer to: (External) AgilePoint NX Connector For Monday Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Store Column ID In This Variable	Description: Specifies a variable to store the ID of the column. The column ID comes from Monday. Allowed Values: A variable. Format: String Accepted: Letters Numbers Underscores (_) Default Value: None Accepts Variables: Yes Example: Refer to: (External) AgilePoint NX Connector For Monday Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

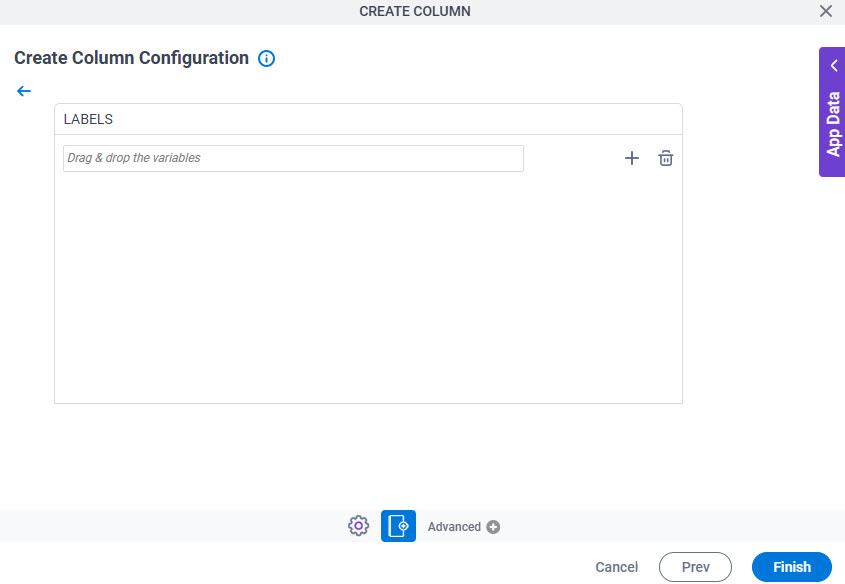

Create Column Configuration > Configure Custom Label

Configures the labels to add to the column.

Fields

Field Name	Definition
Label	Description: Specifies the label to add to the column. Allowed Values: One line of text (a string). Accepted: Letters Numbers Spaces Special characters Default Value: None Accepts Variables: Yes Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Add	Function: Adds a row to create a label.
Delete	Function: Deletes the selected row.
