Chat Completion (NVIDIA NIM) activity

Configure the Chat Completion activity

Examples

(External) AgilePoint NX Connector For NVIDIA NIM
Examples - Step-by-step use case examples, information about what types of examples are provided in the AgilePoint NX Product Documentation, and other resources where you can find more examples.

Prerequisites

AgilePoint NX OnDemand (public cloud), AgilePoint NX PrivateCloud, or AgilePoint NX OnPremises v9.0 Software Update 1 or higher.

Good to Know

To send an email notification, click Advanced > Email Notifications .
For more information, refer to Email Notifications screen (Process Activities).
In most text fields, you can use process data variables as an alternative to literal data values.
You can configure whether this activity waits for other activities before it runs.
For more information, refer to How Do I Configure an Activity to Wait for Other Incoming Activities?
This section shows the configuration settings on the configuration screens for this activity. Other configuration settings apply to system activities. For more information, refer to:
Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

How to Start

Open Process Builder.
For information about how to open this screen, refer to Process Builder.
In Process Builder, in the Activity Library, open the NVIDIA NIM tab.

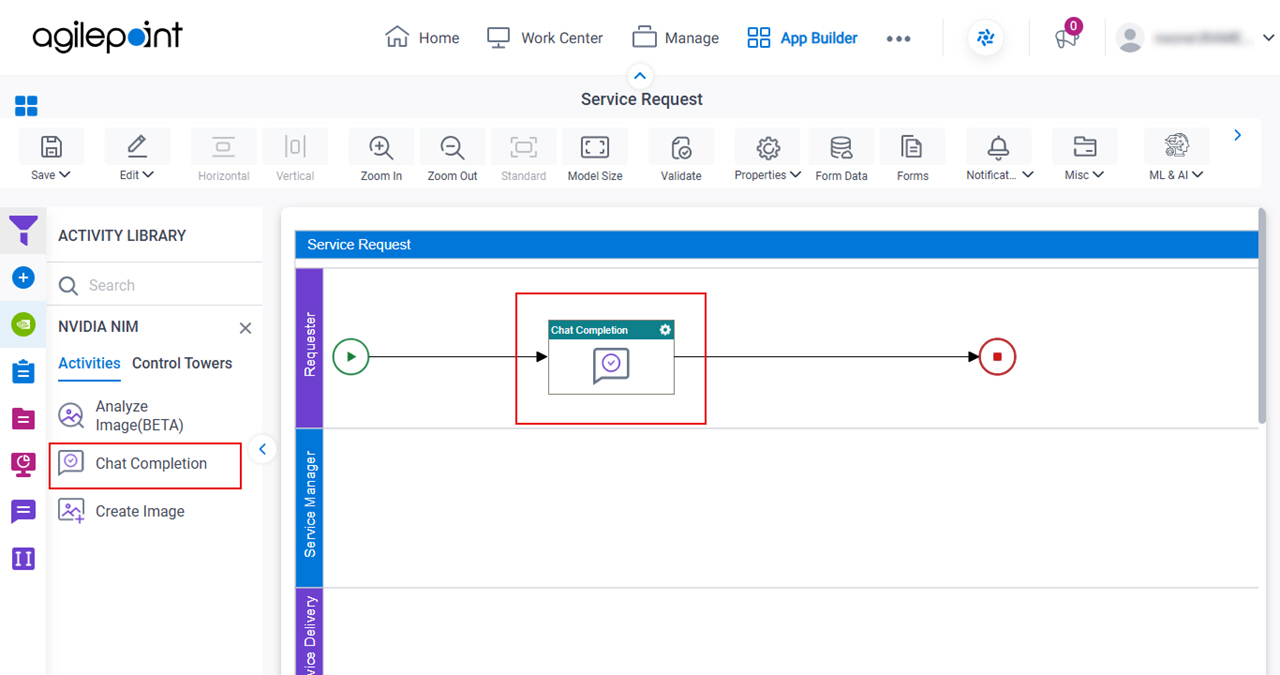

On the NVIDIA NIM > Activities tab, drag the Chat Completion activity onto your process.

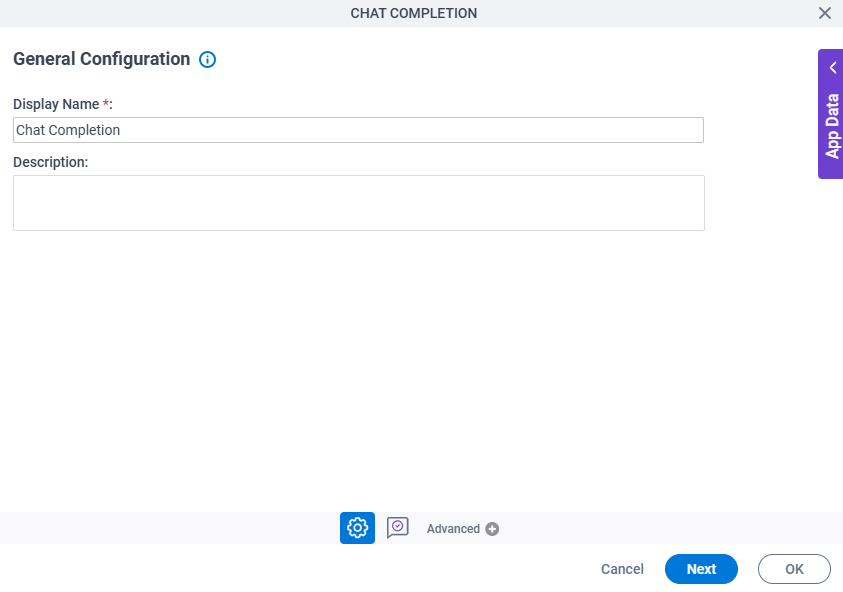

General Configuration

Specifies the basic settings for the Chat Completion activity.

Good to Know

Documentation for this screen is provided for completeness. The fields are mostly self-explanatory.

Fields

Field Name	Definition
Display Name	Description: Specifies the activity name that shows in your process. Allowed Values: One line of text (a string). Accepted: Letters Numbers Spaces Default Value: None Accepts Variables: No Example: This is a common configuration field that is used in many examples. Refer to: Examples - Step-by-step use case examples, information about what types of examples are provided in the AgilePoint NX Product Documentation, and other resources where you can find more examples.
Description	Description: Specifies an optional text description for your activity. Allowed Values: More than one line of text. Default Value: None Accepts Variables: No

Field Name

Definition

Display Name

Description:

Specifies the activity name that shows in your process.

Allowed Values:

One line of text (a string).

Accepted:

Letters
Numbers
Spaces

Default Value:

None

Accepts Variables:

No

Example:

This is a common configuration field that is used in many examples. Refer to:

Examples - Step-by-step use case examples, information about what types of examples are provided in the AgilePoint NX Product Documentation, and other resources where you can find more examples.

Description

Description:: Specifies an optional text description for your activity.
Allowed Values:: More than one line of text.
Default Value:: None
Accepts Variables:: No

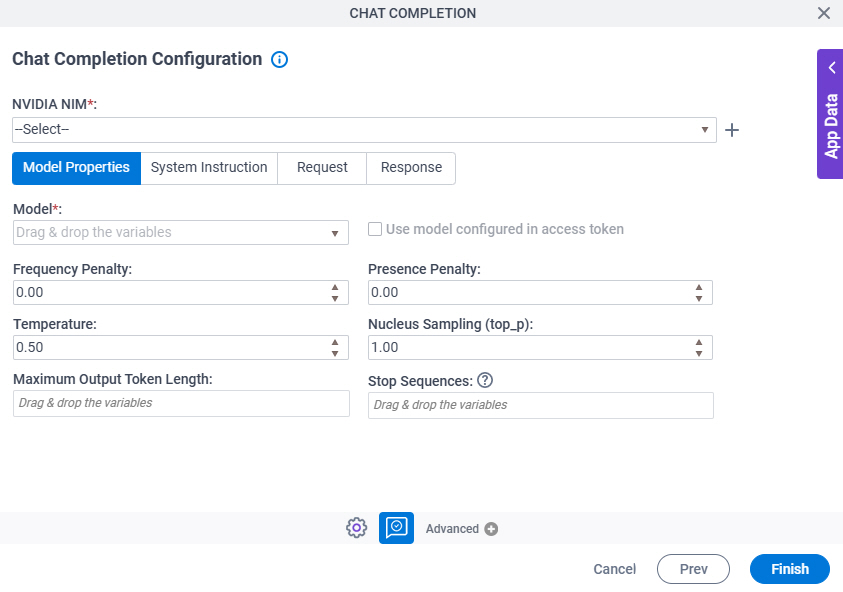

Chat Completion Configuration > Model Properties tab

Configures the LLM to generate text output.

Fields

Field Name	Definition
NVIDIA NIM	Description: Specifies the access token that connects to NVIDIA NIM. Allowed Values: A list of access tokens configured for your environment. Default Value: None
Create	Opens this Screen: Access Token for NVIDIA NIM Function of this Screen: Configure an access token to connect to NVIDIA NIM.
Model	Description: Specifies the name of the model to use to generate text output. Allowed Values: A model name from the list. When you select the access token from the access token field, this field shows the model names associated with the access token. If the specified access token is configured with the model and the Use Model Configured In Access Token field is selected, this field shows the model name configured with the access token, and you can not change it. Default Value: None Accepts Variables: Yes Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Use Model Configured In Access Token	Description: Specifies whether to use the model configured in the selected access token. Allowed Values: Selected - Uses the model configured in the access token. When you select the access token from the access token field, this field is enabled. Deselected - Configures the model to use to generate text output. Default Value: Deselected Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Frequency Penalty	Description: Specifies the frequency penalty for the LLM to use the same words or phrases in generated text output. A high value means the model uses the same words or phrases less frequently. A low value means the model uses the same words or phrases more frequently. Allowed Values: A decimal number. Range: -2.00 - 2.00 Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Presence Penalty	Description: Specifies the presence penalty for the LLM model to use the same word frequently in generated text output. A high value means the model uses the same word less frequently. A low value means the model uses the same word more frequently. Allowed Values: A decimal number. Range: -2.00 - 2.00 Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Maximum Token Length	Description: Specifies the maximum number of tokens that can be used to generate text output. This value limits the length of the generated text output. Allowed Values: An integer. Range: 1-10000 Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Stop Sequences	Description: Specifies one or more stop sequences to make the LLM stop creating text. The model stops creating text when it finds the specified stop sequence. Allowed Values: A maximum of 4 stop sequences, separated by semicolons (;). Stop sequences are specific words, phrases, or special characters other than semicolons (;). Default Value: None Accepts Variables: Yes Example: Thank you;Best regards;I hope this helps For list items, if the stop sequence value is 11, the model generates stops generating list items after 10 items. If the stop sequence is a period (.), the model stops generating text at the end of a sentence.
Temperature	Description: Specifies the temperature value for the model to control the randomness of text output. Allowed Values: A decimal number. Range: 0.00 - 2.00 Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Nucleus Sampling (top_p)	Description: Specifies a top_p threshold value to control the randomness and predictability of text generation. This value limits the selection of possible tokens to the top_p percentage of cumulative probability. Allowed Values: A decimal number. Range: 0.00 - 2.00 Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

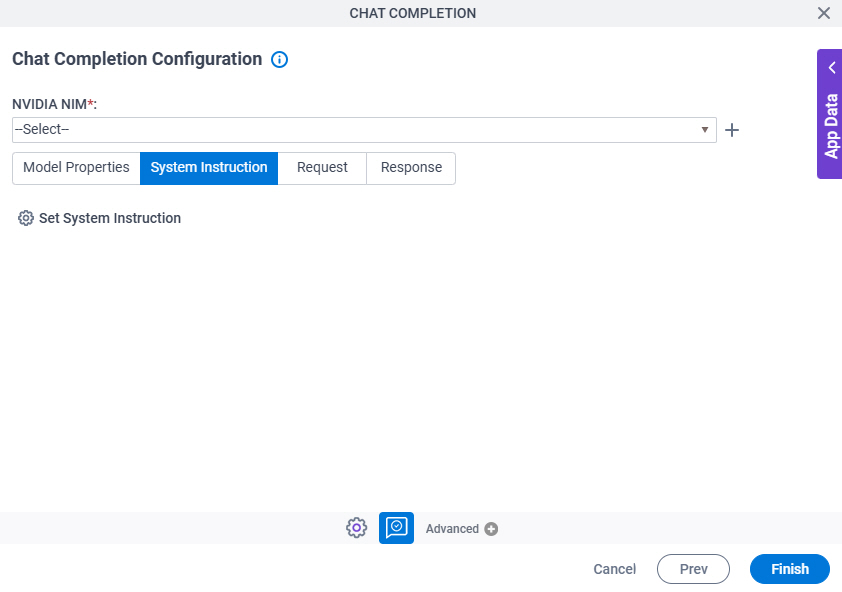

Chat Completion Configuration > System Instruction tab

Configures the system instruction that is used to guide the LLM to generate text output.

Fields

Field Name	Definition
NVIDIA NIM	Description: Specifies the access token that connects to NVIDIA NIM. Allowed Values: A list of access tokens configured for your environment. Default Value: None
Create	Opens this Screen: Access Token for NVIDIA NIM Function of this Screen: Configure an access token to connect to NVIDIA NIM.
Set System Instruction	Opens this Screen: Chat Completion Configuration > NVIDIA NIM > System Instruction > Goals/Mission tab Function of this Screen: Specifies the goals or rules for the LLM to generate text output.

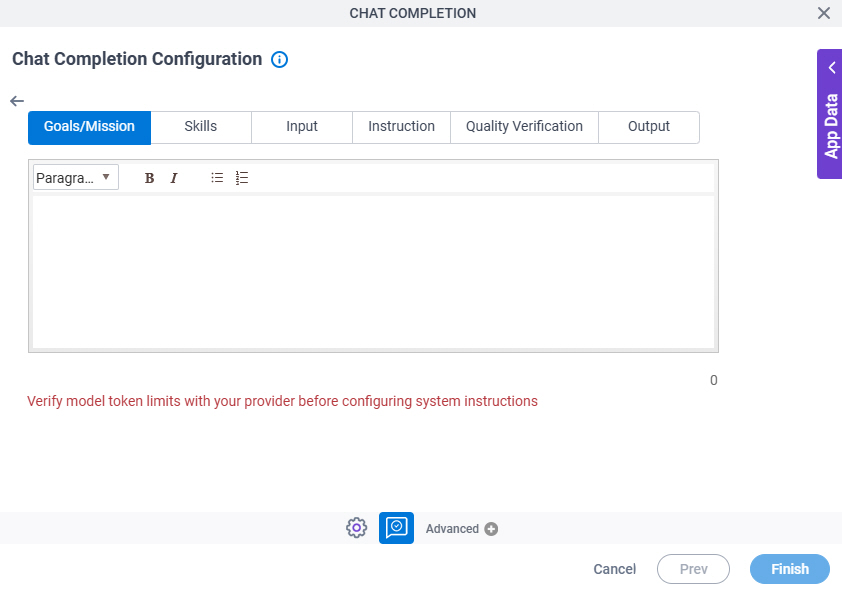

Chat Completion Configuration > System Instruction > Goals/Mission tab

Specifies the goals or rules for the LLM to generate text output.

Fields

Field Name	Definition
Goals / Mission	Description: Specifies the goals or rules for the LLM to generate text output. To Open this Field: On the System Instruction tab, click Set System Instruction. Allowed Values: More than one line of text. Format: Rich text Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

Field Name

Definition

Goals / Mission

Description:

Specifies the goals or rules for the LLM to generate text output.

To Open this Field:

On the System Instruction tab, click Set System Instruction.

Allowed Values:

More than one line of text.

Format:

Rich text

Default Value:

None

Limitations:

Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

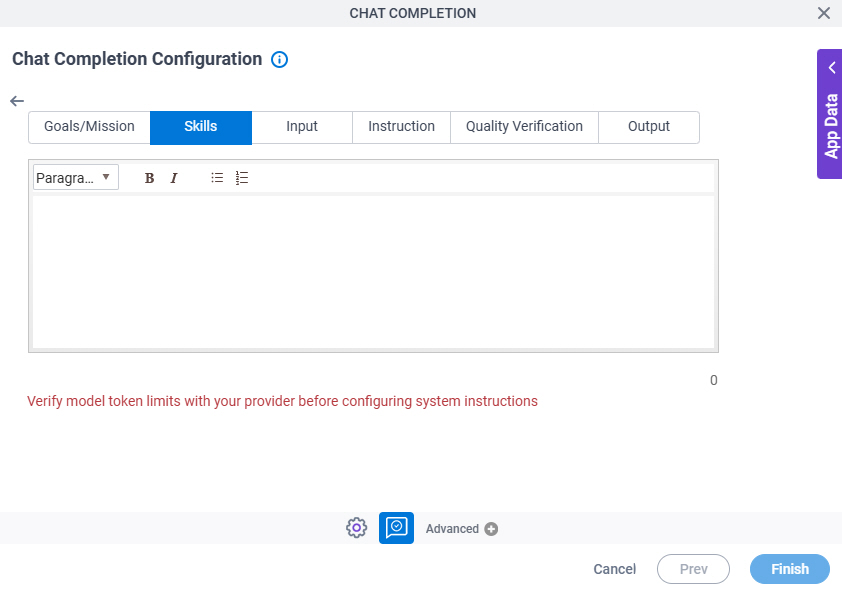

Chat Completion Configuration > System Instruction > Skills tab

Specifies the skills or roles for the LLM used to generate text output.

Fields

Field Name	Definition
Skills	Description: Specifies the skills or roles for the LLM used to generate text output. To Open this Field: On the System Instruction tab, click Set System Instruction. Allowed Values: More than one line of text. Format: Rich text Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

Field Name

Definition

Skills

Description:

Specifies the skills or roles for the LLM used to generate text output.

To Open this Field:

On the System Instruction tab, click Set System Instruction.

Allowed Values:

More than one line of text.

Format:

Rich text

Default Value:

None

Limitations:

Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

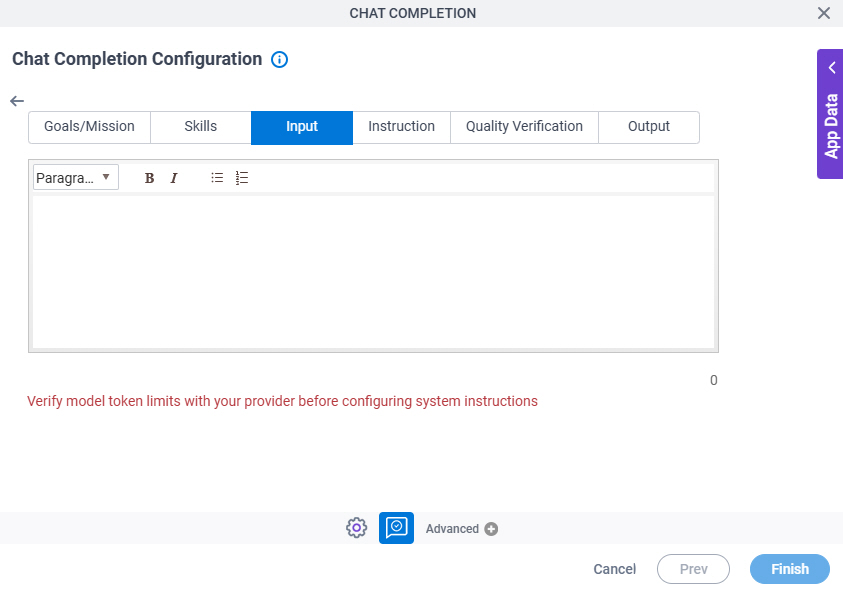

Chat Completion Configuration > System Instruction > Input tab

Specifies the input content the LLM used to generate text output.

Fields

Field Name	Definition
Input	Description: Specifies the input content the LLM used to generate text output. To Open this Field: On the System Instruction tab, click Set System Instruction. Allowed Values: More than one line of text. Format: Rich text Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

Field Name

Definition

Input

Description:

Specifies the input content the LLM used to generate text output.

To Open this Field:

On the System Instruction tab, click Set System Instruction.

Allowed Values:

More than one line of text.

Format:

Rich text

Default Value:

None

Limitations:

Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

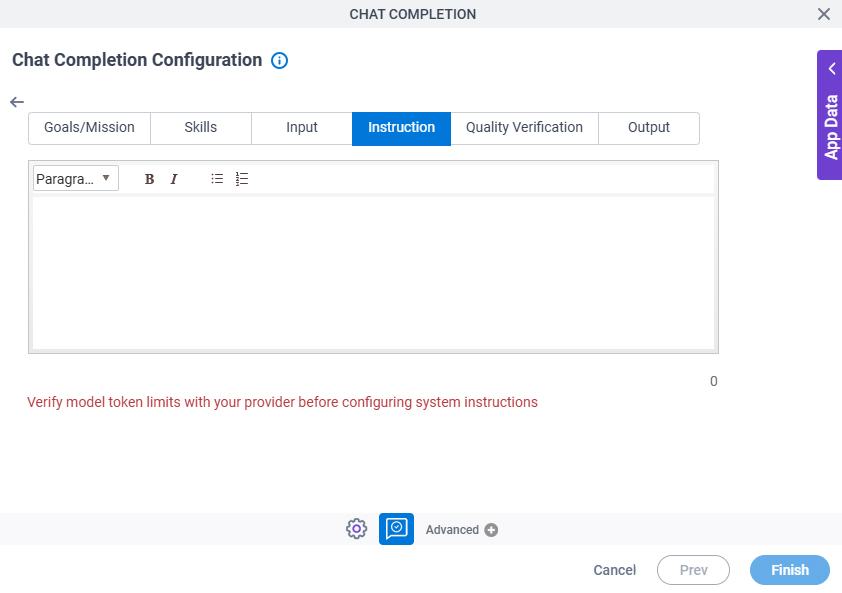

Chat Completion Configuration > System Instruction > Instruction tab

Specifies any guidance or information to refine the response of the model to generate text output.

Fields

Field Name	Definition
Instruction	Description: Specifies any guidance or information to refine the response of the model to generate text output. To Open this Field: On the System Instruction tab, click Set System Instruction. Allowed Values: More than one line of text. Format: Rich text Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

Field Name

Definition

Instruction

Description:

Specifies any guidance or information to refine the response of the model to generate text output.

To Open this Field:

On the System Instruction tab, click Set System Instruction.

Allowed Values:

More than one line of text.

Format:

Rich text

Default Value:

None

Limitations:

Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

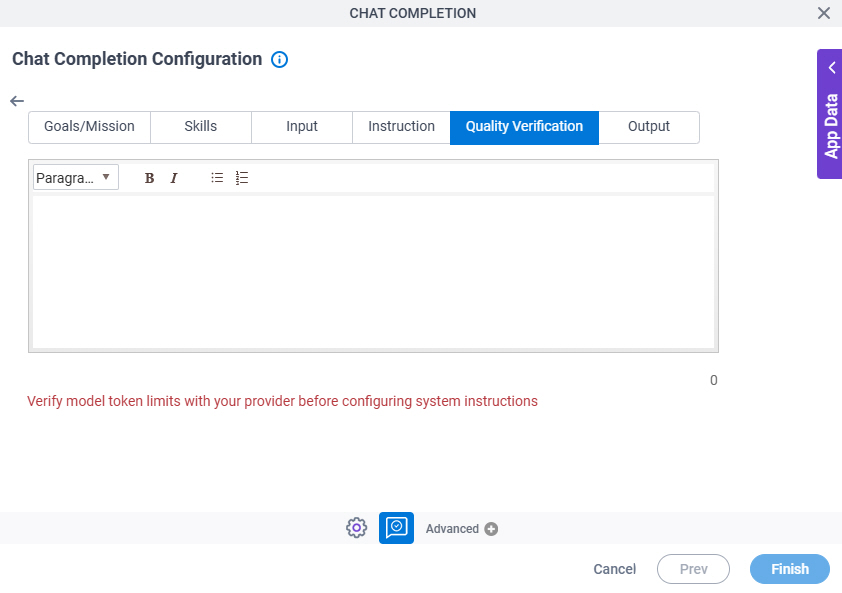

Chat Completion Configuration > System Instruction > Quality Verification tab

Specifies any guidance or information to verify the accuracy of the generated text output.

Fields

Field Name	Definition
Quality Verification	Description: Specifies any guidance or information to verify the accuracy of the generated text output. To Open this Field: On the System Instruction tab, click Set System Instruction. Allowed Values: More than one line of text. Format: Rich text Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

Field Name

Definition

Quality Verification

Description:

Specifies any guidance or information to verify the accuracy of the generated text output.

To Open this Field:

On the System Instruction tab, click Set System Instruction.

Allowed Values:

More than one line of text.

Format:

Rich text

Default Value:

None

Limitations:

Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

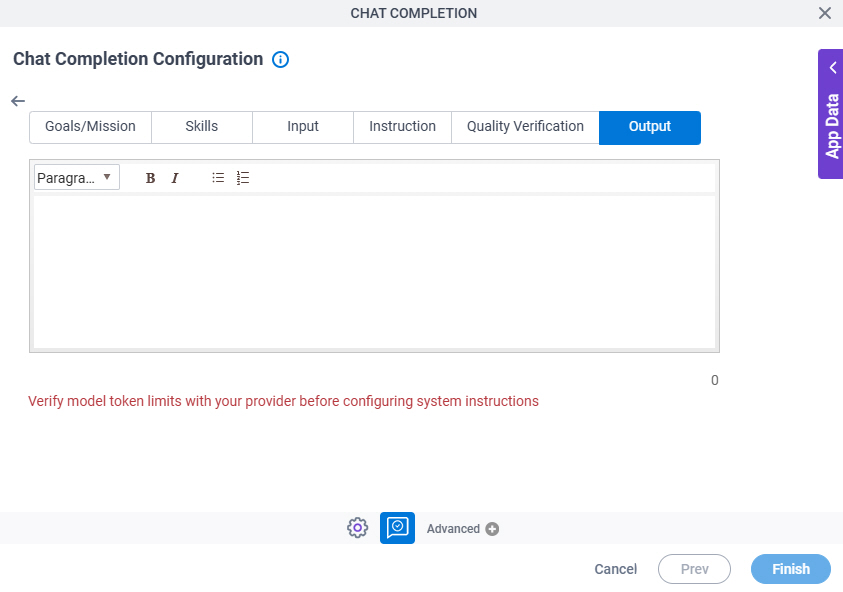

Chat Completion Configuration > System Instruction > Output tab

Specifies the output format the LLM used to generate text output.

Fields

Field Name	Definition
Output	Description: Specifies the output format the LLM used to generate text output. To Open this Field: On the System Instruction tab, click Set System Instruction. Allowed Values: More than one line of text. Format: Rich text Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

Field Name

Definition

Output

Description:

Specifies the output format the LLM used to generate text output.

To Open this Field:

On the System Instruction tab, click Set System Instruction.

Allowed Values:

More than one line of text.

Format:

Rich text

Default Value:

None

Limitations:

Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

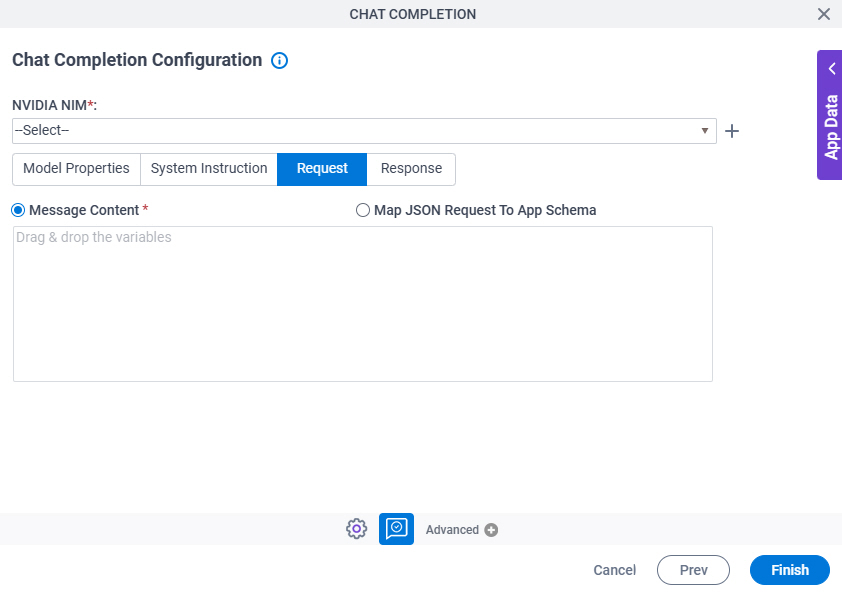

Chat Completion Configuration > Request tab

Specifies how to connect the request data from the LLM to the AgilePoint process schema.

Fields

Field Name	Definition
NVIDIA NIM	Description: Specifies the access token that connects to NVIDIA NIM. Allowed Values: A list of access tokens configured for your environment. Default Value: None
Create	Opens this Screen: Access Token for NVIDIA NIM Function of this Screen: Configure an access token to connect to NVIDIA NIM.
Message Content / Map JSON Request To App Schema	Description: Specifies how to connect the request data from the LLM to the AgilePoint process schema. Allowed Values: Message Content – Specifies a text prompt that defines the content for the message. The LLM reads the text in this field to generate text output. Map JSON Request To App Schema - Specifies a payload to use to connect to the AgilePoint process schema. The payload must be in JSON format. Click the Map Schema button to open the Schema Mapper. Use this screen to connect the payload values to the AgilePoint process schema. Default Value: Message Content Accepts Variables: Yes Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?

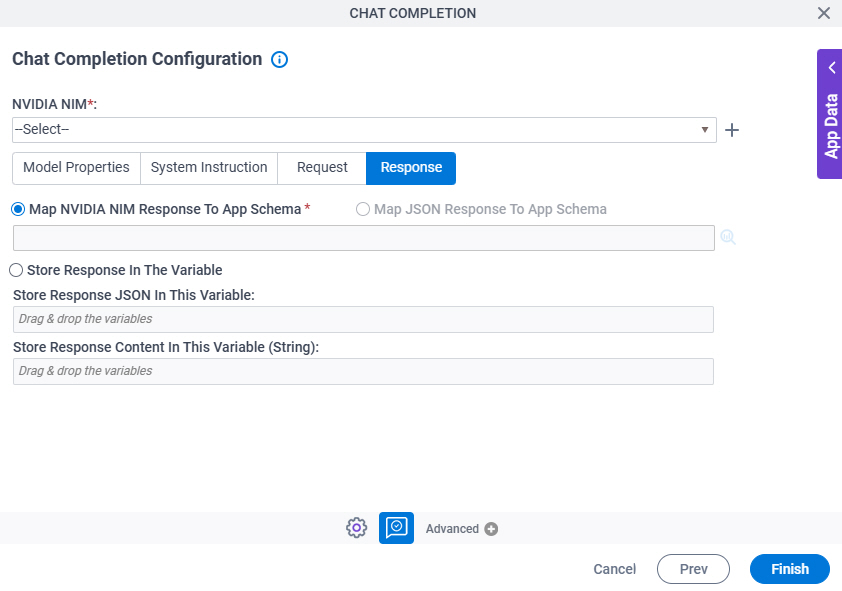

Chat Completion Configuration > Response tab

Specifies where to store the response from the LLM.

Fields

Field Name	Definition
NVIDIA NIM	Description: Specifies the access token that connects to NVIDIA NIM. Allowed Values: A list of access tokens configured for your environment. Default Value: None
Create	Opens this Screen: Access Token for NVIDIA NIM Function of this Screen: Configure an access token to connect to NVIDIA NIM.
Map NVIDIA NIM Response To App Schema / Map JSON Response To App Schema	Description: Specifies where to store the response from NVIDIA NIM. Allowed Values: Map NVIDIA NIM Response To App Schema – Select this option if you want to map the information from the NVIDIA NIM data model to your process schema. Click the Schema Mapping button to open the Schema Mapper. Use this screen to connect the response to the data model for your process. Map JSON Response To App Schema – Select this option if you want to map the information from the payload specified in the Output field on the System Instruction > Output tab to your process schema. The payload must be in JSON format. Click Map Response to open the Schema Mapper. Use this screen to connect the response to the data model for your process. Default Value: Map NVIDIA NIM Response To App Schema Accepts Variables: No Limitations: On the System Instruction > Output tab, if you enter the payload in the Output field,, the Map JSON Response To App Schema option is enabled. Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Store Response JSON In This Variable	Description: Specifies a variable to store the information from the LLM. In the text field, specify a variable that accepts an alphanumeric string in JSON format. Allowed Values: A variable. Format: String Accepted: Letters Numbers Spaces Special characters Default Value: None Accepts Variables: Yes Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
Store Response Content In This Variable (String)	Description: Specifies a variable to store the content of the text output from the LLM. Allowed Values: A variable. Format: String Accepted: Letters Numbers Spaces Special characters Default Value: None Limitations: Some information about third-party integrations is outside the scope of the AgilePoint NX Product Documentation. It is the responsibility of the vendors who create and maintain these technologies to provide this information. This includes specific business use cases and examples; explanations for third-party concepts; details about the data models and input and output data formats for third-party technologies; and various types of IDs, URL patterns, connection string formats, or other technical information that is specific to the third-party technologies. For more information, refer to Where Can I Find Information and Examples for Third-Party Integrations?
