(Example) Configure a Condition Activity to Check the Leave Information

Good to Know

• For a list of limitations for AgilePoint NX example documentation, refer to Examples.
• Make sure you configure the direction of the incoming and outgoing arrow through Condition Builder screen correctly.

How to Start

1. (Example) Create an eForm to Start the Process (Create Absence Request).
2. (Example) Create a Subprocess .
3. (Example) Configure Process Data Variables for a Next Loop Activity.
4. (Example) Configure an Initialize Loop Activity to Store the Leave Information.

Procedure

1. On the Common tab, drag the Condition activity onto your process.

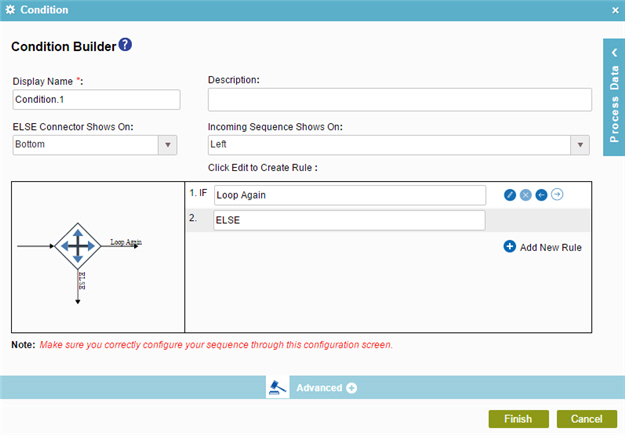

2. In the IF field, enter Loop Again.





3. Click Edit .

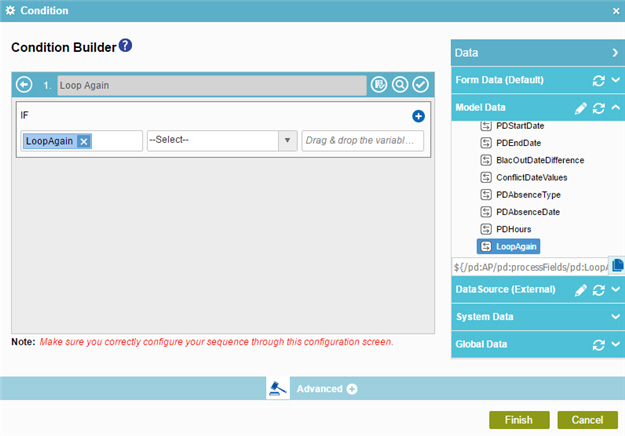

4. In the Rule Variable field, drag the LoopAgain process data variable from the Process Data > Model Data screen.

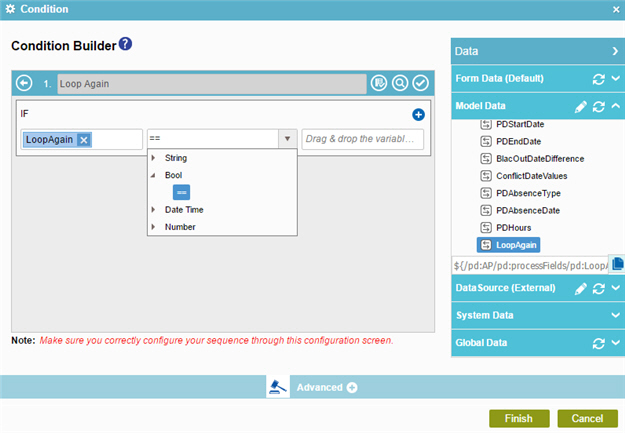

5. In the Operator field, select the expression == from the Bool data type.

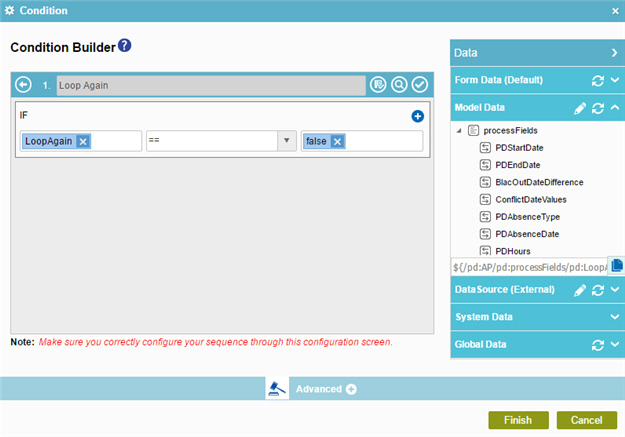

6. In the Rule Value field, enter false





7. Click Validate to make sure the rule is correct.
8. Click Back to save your rule and go back to the previous screen.
9. Click Finish.

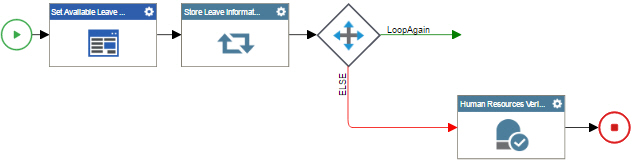

10. The Process Builder shows the Condition activity for the example human resources leave verification subprocess.
