Specifies where and how to delete the records from the database.
Navigation
- In AgilePoint Envision, open a process template.
- Navigate to the Database stencil.
- On the Database stencil, drag the
Delete Records AgileShape, and drop it on the process template.
- To view the entire list of properties, in the Design Tasks pane, click Show Properties.
- On the Configure field, click the Ellipses button.

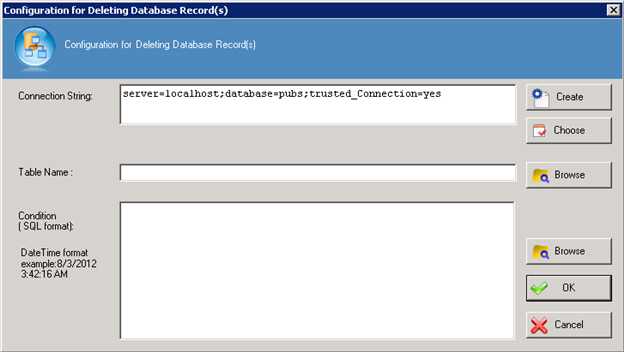

Field Definitions
| Field Name |
Definition |
Connection String
|
- Definition:
- Specifies the connection string that is used to connect to the database.
- Click
Choose to select a connection string from the list of
shared custom attributes (defined and managed in Enterprise Manager.)
- Click Create to
create a new connection string.
- Allowed Values:
- A valid SQL connection string.
- Default Value:
- server=myserver;database=pubs;trusted_Connection=yes
- Custom Attributes:
- Yes
- Example:
- server=DataServer;database=StoreDb;trusted_Connection=yes
|
Table Name
|
- Definition:
- Specify the name of table from which the database records has to be deleted.
- Allowed Values:
- A valid database table name.
- Default Value:
- None
- Custom Attributes:
- Yes
|
Browse
|
- Function:
- Enables you to find the associated item.
- Purpose of this Window:
- Specifies a particular database table from the database.
|
Condition
|
- Definition:
- The SQL WHERE clause that defines which database records should be updated.
- Allowed Values:
- A valid SQL WHERE clause.
- Default Value:
- None
- Custom Attributes:
- No
- Example:
- InvoiceNumber <= 3452
|
Create
|
- Opens the Following Window:
- Database Connection Configuration Window
- Purpose of this Window:
- Creates a connection string with specified information.
|
Choose
|
- Opens the Following Window:
- Browse Custom Attributes Window
- Purpose of this Window:
- Specifies a connection string from a list of shared custom attributes.
|
