Create a Process-Based App to Start from SharePoint with the App Builder

To create a process-based app to start from SharePoint, do the procedure in this topic.

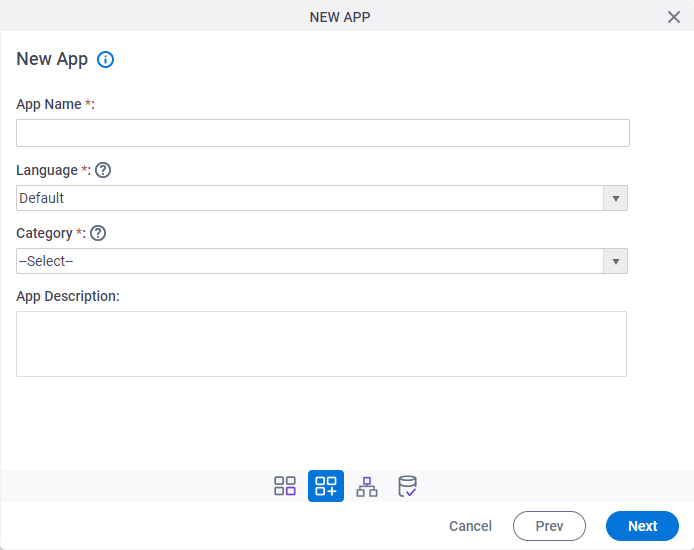

Figure: New Application screen

New Application screen

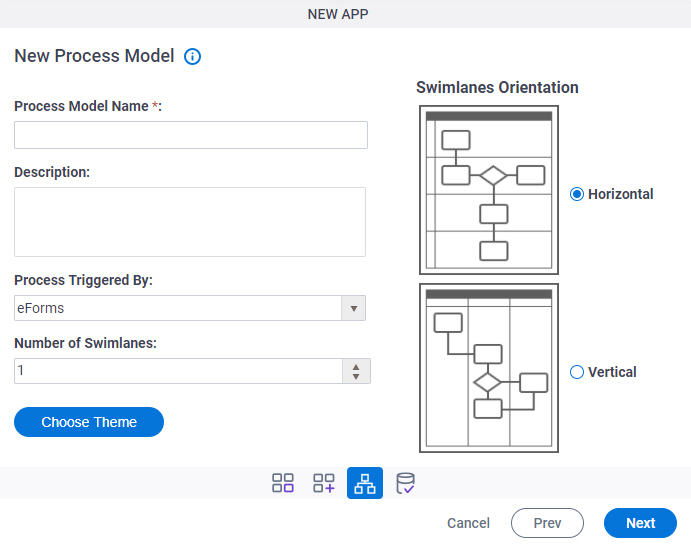

Figure: New Process Model screen

New Process Model screen
Figure: SharePoint Configuration screen

SharePoint Configuration screen
Figure: Fields screen (SharePoint)

Fields screen in SharePoint
Figure: Related Entity screen (SharePoint)

Related Entity screen in SharePoint

Video: Using SharePoint List Forms with AgilePoint

How to Start

  1. Sign in to AgilePoint NX.
  2. Click App Builder.

    Build Apps screen
  3. On the App Explorer screen, click Add App.

    Add App button

Procedure

  1. On the New App screen, complete these fields:
    Field Name Definition

    App Name

    Function:
    Specifies a name for your app.
    Accepted Values:
    One line of text that can have spaces.
    Default Value:
    None
    Example:
    Refer to:

    Language

    Function:
    Specifies the language for your app.
    Accepted Values:
    A language from the list.
    Default Value:
    None
    Accepts Process Data Variables:
    No

    App Description

    Function:
    An optional description for your app.
    Accepted Values:
    More than one line of text.
    Default Value:
    None
  2. Click Next.
  3. On the New Process Model screen, complete these fields:
    Field Name Definition

    Process Model Name

    Function:
    Specifies a name for your process.
    Accepted Values:
    One line of text that can have spaces.
    Default Value:
    None
    Accepts Process Data Variables:
    No
    Example:
    Refer to:

    Description

    Function:
    A description for your process.
    Accepted Values:
    More than one line of text.
    Default Value:
    None
    Accepts Process Data Variables:
    No
    Example:
    Refer to:
  4. In the Process Triggered By list, select SharePoint.
  5. Complete these fields as necessary.
    Field Name Definition

    Number of Swimlanes

    Function:
    Specifies a number of swimlanes to be added to the Process Builder screen to organize the steps in your process.
    Accepted Values:
    A number from 0 to 20.
    Default Value:
    1
    Example:
    Refer to:

    Swimlanes Orientation

    Function:
    Specifies the direction for your swimlanes.
    Accepted Values:
    • Horizontal - Shows swimlanes from left to right.
    • Vertical - Shows swimlanes from top to bottom.
    Default Value:
    Horizontal

    Choose Theme

    Opens this Screen:
    Choose Process Model Theme
    Function of this Screen:
    Specifies a process theme.
  6. Click Next.
  7. On the SharePoint Configuration screen, click the Configuration tab.
  8. On the Configuration tab, complete these fields as necessary.
    Field Name Definition

    Data Source Name

    Function:
    Specifies the name of the data source for SharePoint.
    Accepted Values:
    One line of text that can have spaces.
    Default Value:
    None

    SharePoint

    Function:
    Specifies the access token that connects to your SharePoint site.
    Accepted Values:
    A list of access tokens configured for your environment.
    Default Value:
    None
    Accepts Process Data Variables:
    No
    Example:
    Refer to:

    Site URL

    Function:
    Specifies the URL for your SharePoint site.
    Accepted Values:
    A valid SharePoint site URL.
    Default Value:
    None
    Example:
    • http://[machine name]:[port]/sites/[site name]

      Note: You must include the /sites in the Site URL for the site to be created successfully.
    • $\{DocUrl\}

    List Name

    Function:
    Specifies the name of your SharePoint list.
    Accepted Values:
    The name of your SharePoint list.
    Default Value:
    None
    Accepts Process Data Variables:
    Yes
    Example:
    Refer to:
  9. Click the Fields tab.

    This tab and its fields require AgilePoint NX OnDemand (public cloud), or AgilePoint NX Private Cloud or AgilePoint NX OnPremises v7.0 Software Update 1 or higher.

  10. On the Fields tab, complete these fields as necessary.
    Field Name Definition

    Check box

    Function:
    Specifies whether to show a SharePoint field on your process.
    Accepted Values:
    • Selected - Your process contains the field.
    • Deselected - The field does not show on your process.
    Default Value:
    Selected

    Display Name

    Function:
    Shows the fields in your SharePoint list.
    Accepted Values:
    Read only.

    Data Type

    Function:
    Shows the data type of a SharePoint field.
    Accepted Values:
    Read only.

    Schema XPath

    Function:
    Shows the xpath of the SharePoint field.
    Accepted Values:
    Read only.

    Lookup Key

    Function:
    Shows whether the SharePoint field has a lookup relationship.
    Accepted Values:
    Read only.

    Required

    Function:
    Specifies whether the value is required in the SharePoint field.
    Accepted Values:
    Read only.

    Unique

    Function:
    Shows whether a duplicate value is permitted in the SharePoint field.
    Accepted Values:
    Read only.
  11. Click the Related Entity tab.

    This tab and its fields require AgilePoint NX OnDemand (public cloud), or AgilePoint NX Private Cloud or AgilePoint NX OnPremises v7.0 Software Update 1 or higher.

    Note: The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
  12. On the Related Entity tab, complete these fields as necessary.
    Field Name Definition

    Check box

    Function:
    Specifies whether to use the SharePoint list relationship on your process.
    Accepted Values:
    • Selected - Your process uses the relationship.
    • Deselected - Your process does not use the relationship.
    Default Value:
    Deselected
    Example:
    Refer to:

    Primary Entity Name

    Function:
    Shows the SharePoint list name that you specified on the SharePoint Configuration screen > Configuration tab.
    Note: The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
    Accepted Values:
    Read only.

    Primary Entity Key Field

    Function:
    Shows the primary field for the SharePoint parent list.
    Note: The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
    Accepted Values:
    Read only.

    Related Entity

    Function:
    Shows other SharePoint lists that have relationships with SharePoint parent list.
    Note: The word entity on this screen refers to a container within your data model. For Data Entities or Salesforce, this container is called an entity. For a database, entity refers to a database table. For SharePoint Integration, entity refers to a SharePoint list. For Microsoft Excel, entity refers to an Excel table.
    Accepted Values:
    Read only.

    Dependent Field

    Function:
    Shows the SharePoint field that has a child relationship with a field in the parent list.
    Accepted Values:
    Read only.

    Field Field icon

    Function:
    Shows the SharePoint fields associated with the SharePoint child list.
  13. Click Finish.
