* Size of file uploaded=5K
Duration of test is a sample over one hour
| Load Per Day (Files Uploaded Per Day) | Average Upload Times Per File Without AP (In Seconds) | Average Upload Times Per File With AP (In Seconds) |
| 5K | 0.0529 | 0.05484 |
| 10K | 0.0501 | 0.0560 |
| 25K | 0.0443 | 0.0545 |
| 50K | 0.0446 | 0.0599 |
| 100K | 0.0458 | 0.0723 |

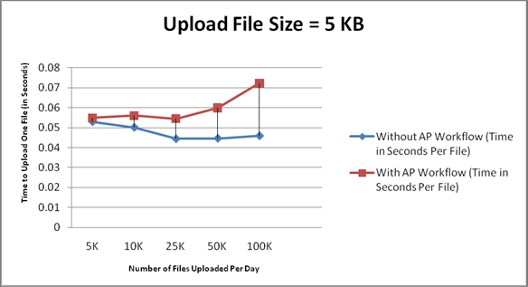

The following graph shows a comparison of the variation in the average upload times for a 5KB file to an AgilePoint-enabled SharePoint Document Library versus a SharePoint Document Library as the load increases.

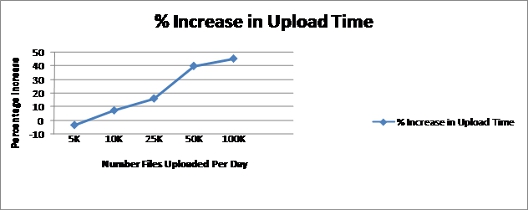

The following graph shows that the percentage overhead for uploading a 1KB file within an AgilePoint-enabled SharePoint Document Library varies as the load increases.
* Size of file uploaded = 1M
* Duration of test is a sample over one hour
| Load Per Day (Files Uploaded Per Day) | Average Upload Times Per File Without AP (in seconds) | Average Upload Times Per File With AP (in seconds) |
| 5K | 0.2829 | 0.2735 |
| 10K | 0.2898 | 0.3115 |
| 25K | 0.2690 | 0.3127 |
| 50K | 0.2646 | 0.3709 |
| 100K | 0.2852 | 0.4152 |

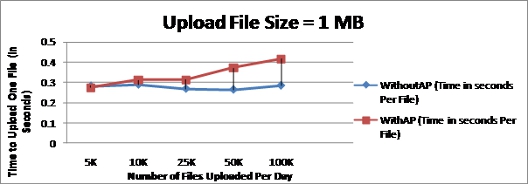

The following graph shows the comparison of the variation in the average upload time for a 1MB file to an AgilePoint-enabled SharePoint Document library versus SharePoint Document Library as the load increases.

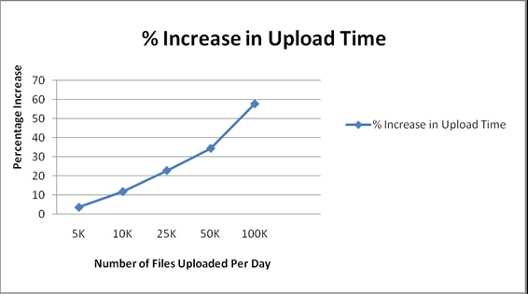

The following graph shows how the percentage overhead varies for uploading 1MB files to an AgilePoint-enabled SharePoint Document Library as the load increases.
