Creates a connection string to connect AgilePoint Event Services and
a database.
Navigation
- On the Enterprise Manager Main Page, click Events Service.
- On the Event Service page, click Database Insert
> Add.

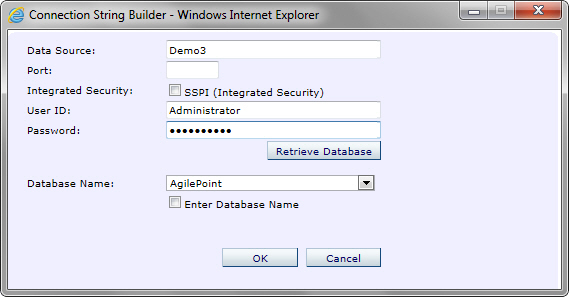

- On the Database Insert Configuration window, click
Build Connection String.
Field Definitions
| Field Name |
Definition |
Data Source
|
- Definition:
- Specifies the database server name, where SQL Server has been installed.
- Allowed Values:
- A valid database server name.
- Default Value:
- None.
- Custom Attributes:
- No
- Example:
- Demo3
|
Port
|
- Definition:
- Specifies the port number to connect to the database server.
- Allowed Values:
- A valid port number.
- Default Value:
- None.
- Custom Attributes:
- No
|
Integrated Security
|
- Definition:
- Determines whether the SSPI integrated security is to be activated.
- Allowed Values:
- Deselected - Specifies not to activate the SSPI integrated security.
- Selected - Specifies to activate the SSPI integrated security.
- Default Value:
- Deselected
|
User ID
|
- Definition:
- Specifies the user name for database authentication.
- Allowed Values:
- A valid user name.
- Default Value:
- None
- Custom Attributes:
- No
|
Password
|
- Definition:
- The password for the authentication account.
- Allowed Values:
- A valid password.
- Default Value:
- None
- Custom Attributes:
- No
|
Retrieve Database
|
- Function:
- Retrieves the names of existing databases from the data source.
|
Database Name
|
- Definition:
- Specifies the name of the database you want.
- Allowed Values:
- The name of your database.
If you select the Enter Database Name check box, the Database Name list becomes unavailable to select a database name. Type a database name in the box.
- Default Value:
- None
|
Enter Database Name
|
- Definition:
- Specifies that a custom database name is entered in the Database Name field.
- Allowed Values:
- Deselected - Specifies to select a database name from the Database Name list.
- Selected - Specifies to type a database name in the Database Name field.
- Default Value:
- Deselected
|
OK
|
- Function:
- Generates the connection string.
|
