Specifies a user to remove from a SharePoint group.
Navigation
- In AgilePoint Envision, open a process template.
- Navigate to the SharePoint stencil.
- On the SharePoint stencil, drag the
Remove User from SP Group AgileShape, and drop it on the process template.
- To view the entire list of properties, in the Design Tasks pane, click Show Properties.

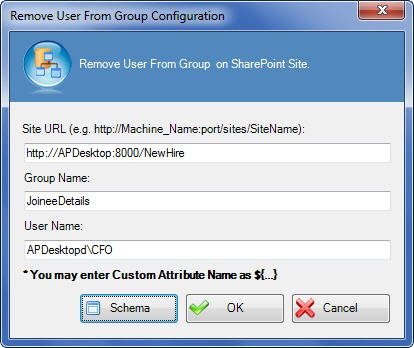

- On the RemoveUserFromGroupConfiguration field, click the Ellipses button.
Field Definitions
| Field Name |
Definition |
Site URL
|
- Definition:
- Specifies the URL for your SharePoint site.
- Allowed Values:
- A valid SharePoint site URL.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- http://mysharepoint:8000/sites/${mysite}
|
Group Name
|
- Definition:
- The name of the SharePoint group you want.
- Allowed Values:
- A valid SharePoint group name.
- Default Value:
- None
- Custom Attributes:
- Yes
|
User Name
|
- Definition:
- Specifies the user name to be removed from the SharePoint group.
- Allowed Values:
- A user name, including the domain name, in the following format:
[domain]\[user name]
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- MyDomain\Administrator
|
Schema
|
- Opens the Following Window:
- Select XPath from Attributes Window
- Purpose of this Window:
- Enables you to select a schema node from the XML schema for
your process.
|
