Associates custom attributes with C# code snippets to update
the custom attribute values.

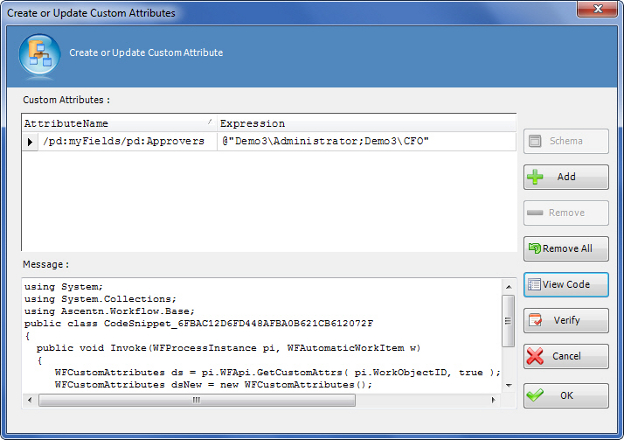

Note: The Create or Update Custom Attributes
configuration dialog is not intended as a complete replacement for Visual
Studio.NET. It is recommend that you create a C# project that you can use as a
"scratch pad" so that you have full access to Intellisense and other built-in
tools while constructing your snippets. This will help in avoiding simple
syntax mistakes and other errors.
Navigation
- In AgilePoint Envision, open a process template.
- Navigate to the Premier Extension stencil.
- On the Premier Extension stencil, drag the
Update Custom Attributes AgileShape, and drop it on the process template.
- To view the entire list of properties, in the Design Tasks pane, click Show Properties.
- On the Configuration field, click the Ellipses button.
Field Definitions
| Field Name |
Definition |
Add
|
- Function:
- Adds a new custom attribute.
|
Schema
|
- Opens the Following Window:
- Select XPath from Attributes Window
- Purpose of this Window:
- Enables you to select a schema node from the XML schema for
your process.
|
AttributeName
|
- Definition:
- The name of the custom attribute that stores the return value of a code snippet at runtime.
- Allowed Values:
- The name of custom attribute to be updated.
You can also use the XML metadata associated with the process.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- A custom attribute - EmployeeName
- An XPath to a schema element - /pd:myFields/pd:empName
|
Expression
|
- Definition:
- Specifies a value that is assigned to the custom attribute at runtime by a code snippet.
- Allowed Values:
- A C# code snippet. The following rules apply:
- You can specify simple expressions only. For example, assignment, call, increment, decrement, and new object expressions.
- The string value must be enclosed within the quotation marks. For example, "Name".
- You cannot leave the Expression field empty.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
-
- "True"
- @"AP5\John; AP5\Bob; AP5\Lily; AP5\Fred";
|
Remove
|
- Function:
- Deletes the selected row from the Custom Attributes list.
|
Remove All
|
- Function:
- Deletes all rows from the Custom Attributes list.
|
View Code
|
- Function:
- Displays a snippet of the C# code created for the custom attributes in the Message field.
|
Message
|
- Definition:
- Displays a snippet of the C# code that is associated with custom attributes, or
error messages during code compilation.
- Allowed Values:
- Read only.
|
Verify
|
- Function:
- Compiles the code snippet to check the custom attributes and corresponding expression values and displays the error message if an error occurs.
|
