Specifies where and how to insert the new database records into the database.
Navigation
- In AgilePoint Envision, open a process template.
- Navigate to the Database stencil.
- On the Database stencil, drag the
Stored Procedure AgileShape, and drop it on the process template.
- To view the entire list of properties, in the Design Tasks pane, click Show Properties.

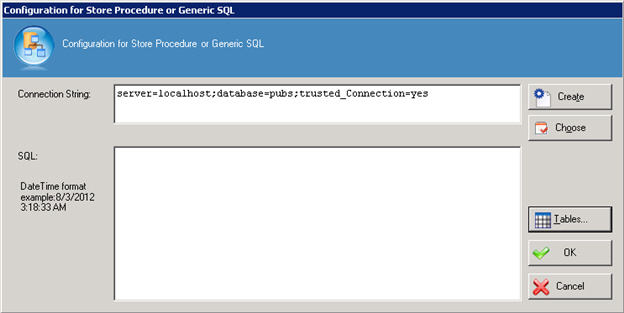

- On the Configure field, click the Ellipses button.
Field Definitions
| Field Name |
Definition |
Connection String
|
- Definition:
- Specifies the connection string that is used to connect to the database.
- Click
Choose to select a connection string from the list of
shared custom attributes (defined and managed in Enterprise Manager.)
- Click Create to
create a new connection string.
- Allowed Values:
- A valid SQL connection string.
- Default Value:
- server=myserver;database=pubs;trusted_Connection=yes
- Custom Attributes:
- Yes
- Example:
- server=DataServer;database=StoreDb;trusted_Connection=yes
|
Create
|
- Opens the Following Window:
- Database Connection Configuration Window
- Purpose of this Window:
- Creates a connection string with specified information.
|
Choose
|
- Opens the Following Window:
- Browse Custom Attributes Window
- Purpose of this Window:
- Specifies a connection string from a list of shared custom attributes.
|
SQL
|
- Definition:
- The SQL statement that will be performed on the database by this
AgileShape at runtime.
- Allowed Values:
- A valid SQL SELECT query.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- SELECT ShowName FROM EventList WHERE showID = 1001
|
Tables
|
- Function:
- Selects the table from the database.
|
