Specifies the details for calling an external command.
Navigation
- In AgilePoint Envision, open a process template.
- Navigate to the Advanced Extension stencil.
- On the Advanced Extension stencil, drag the
External Command AgileShape, and drop it on the process template.
- To view the entire list of properties, in the Design Tasks pane, click Show Properties.

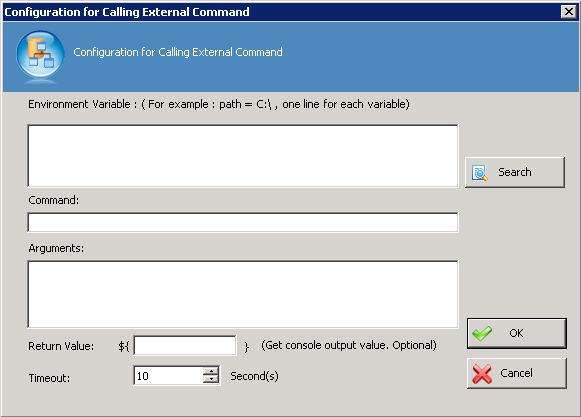

- On the Configure field, click the Ellipses button.
Field Definitions
| Field Name |
Definition |
Environment Variable
|
- Definition:
- Specifies set of dynamic named values that affects the way running processes will behave on a computer.
- Allowed Values:
- A valid existing or defined environment variable in the system.
- Default Value:
- None
- Custom Attributes:
- No
- Example:
- Path
|
Command
|
- Definition:
- Specifies command or executable to run.
- Allowed Values:
- A valid command or executable name.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- CMD
|
Arguments
|
- Definition:
- Specifies the parameters required to complete the command.
- Allowed Values:
- A valid argument for the specified command.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- DIR
|
Return Value
|
- Definition:
- Stores output in specified custom attribute.
- Allowed Values:
- A valid custom attribute name.
- Default Value:
- None
- Custom Attributes:
- Yes
- Example:
- OutputCustAttr
|
Timeout
|
- Definition:
- Specifies the time to complete execution of the specified command.
- Allowed Values:
- Numeric number in seconds.
- Default Value:
- 10
- Custom Attributes:
- No
|
