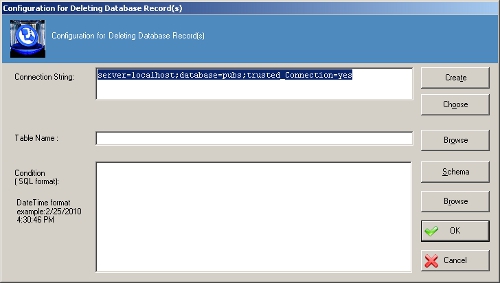

Configuration for Deleting Database Record(s) Window

This property allows the process modeler to configure where and how the records are deleted from the database.

Field Definitions

Field Name	Definition
ConnectionString	The connection string that will be used to connect to the database at runtime. Click Choose to select a connection string from the list of shared custom attributes (defined and managed in Enterprise Manager.) Click Create to create a new connection string. to create a new connection string.
TableName	The name of the database table where this AgileShape should insert the database record.
Condition	The SQL WHERE clause that defines which database records should be updated.

Field Name

Definition

ConnectionString

The connection string that will be used to connect to the database at runtime.

Click Choose to select a connection string from the list of shared custom attributes (defined and managed in Enterprise Manager.)
Click Create to create a new connection string. to create a new connection string.

TableName

The name of the database table where this AgileShape should insert the database record.

Condition

The SQL WHERE clause that defines which database records should be updated.
