InfoPath View
This AgileShape can be used to represent a manual (i.e. human input required) activity that uses a view of a Microsoft InfoPath form as the user interface for the activity. One use of this AgileShape is to associate several different activities with the same view in an InfoPath form. Each activity (i.e. each AgileShape instance) can be configured in order to make the InfoPath form view initialize appropriately for each individual activity.
Properties for This AgilePart
| Field Name | Definition |
|---|---|
| UserDefinedProperties |
Note: Developers may need to write code to fully
implement this.

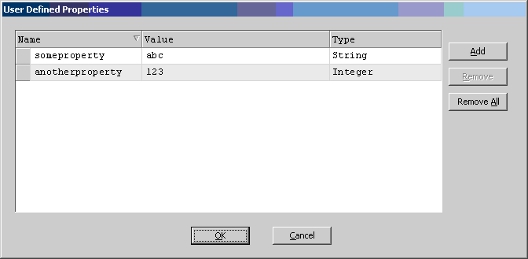

This property allows the process modeler to configure initial ClientData values that will be associated with the AgileShape's associated task(s) at runtime. This is basically a way of allowing you to specify a set of name/value pairs that are passed to your Web page via an object called a WorkItem. This is an alternative to passing data via URL parameters. In your Web page you can retrieve this data via the ClientData property of the WorkItem. It is then up to you to decide how to use the data. Click the Ellipses button to open the configuration dialog.  |
| ViewController |

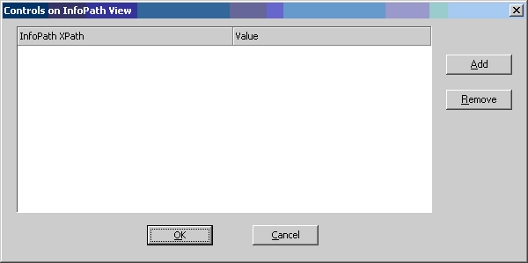

This property allows the process modeler to configure the InfoPath view. Click the Ellipses button to open the configuration dialog.  |
| EnabledExchangeServer |
Default value: False This property allows the process modeler to enable the AgileShape to integrate directly with Microsoft Exchange Server so that the AgileShape's associated task(s) can be viewed directly from Microsoft Outlook's Task List by the task(s)'s assigned participant(s). See the ExchangeServer property for additional information. |
| ExchangeServer |

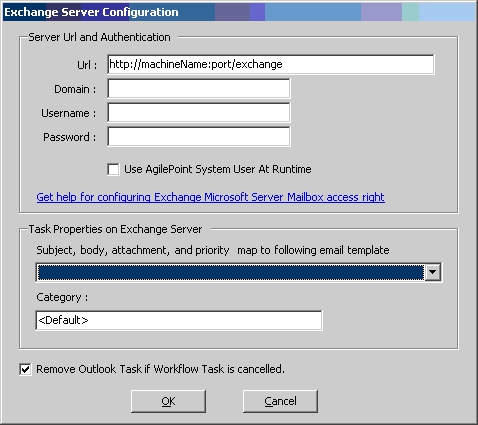

This property allows the process modeler to configure the AgileShape's integration with Microsoft Exchange Server. When properly enabled and configured, the AgileShape will then insert, update, and remove Task items for the task's assigned participants, so that the tasks can be viewed directly from Microsoft Outlook. Click the Ellipses button to open the configuration dialog.
See the EnabledExchangeServer property for additional information. |
AgileWork Properties
The properties of the basic AgileWork AgileShape are also included in this AgileShape. For more information, see AgileWork.
